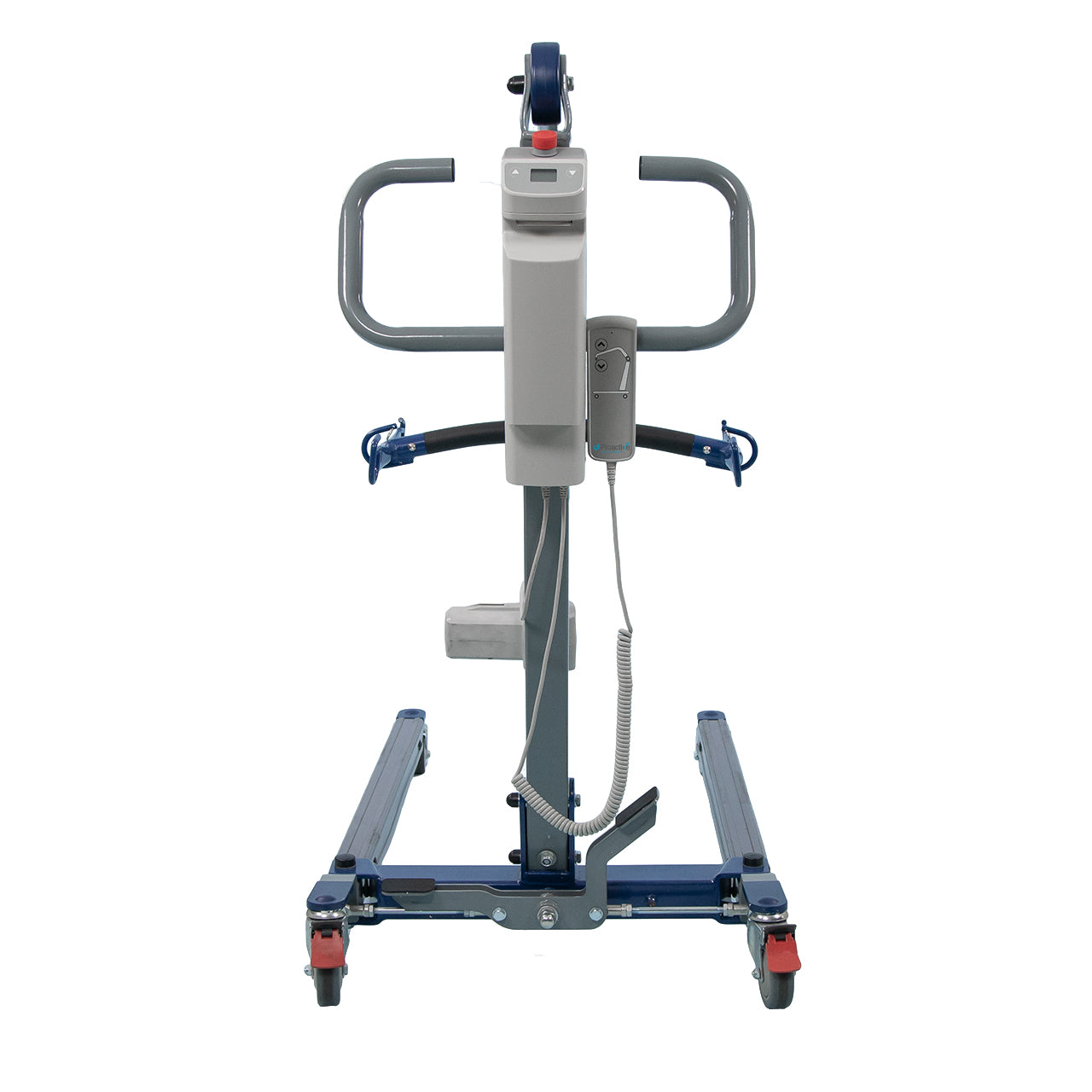

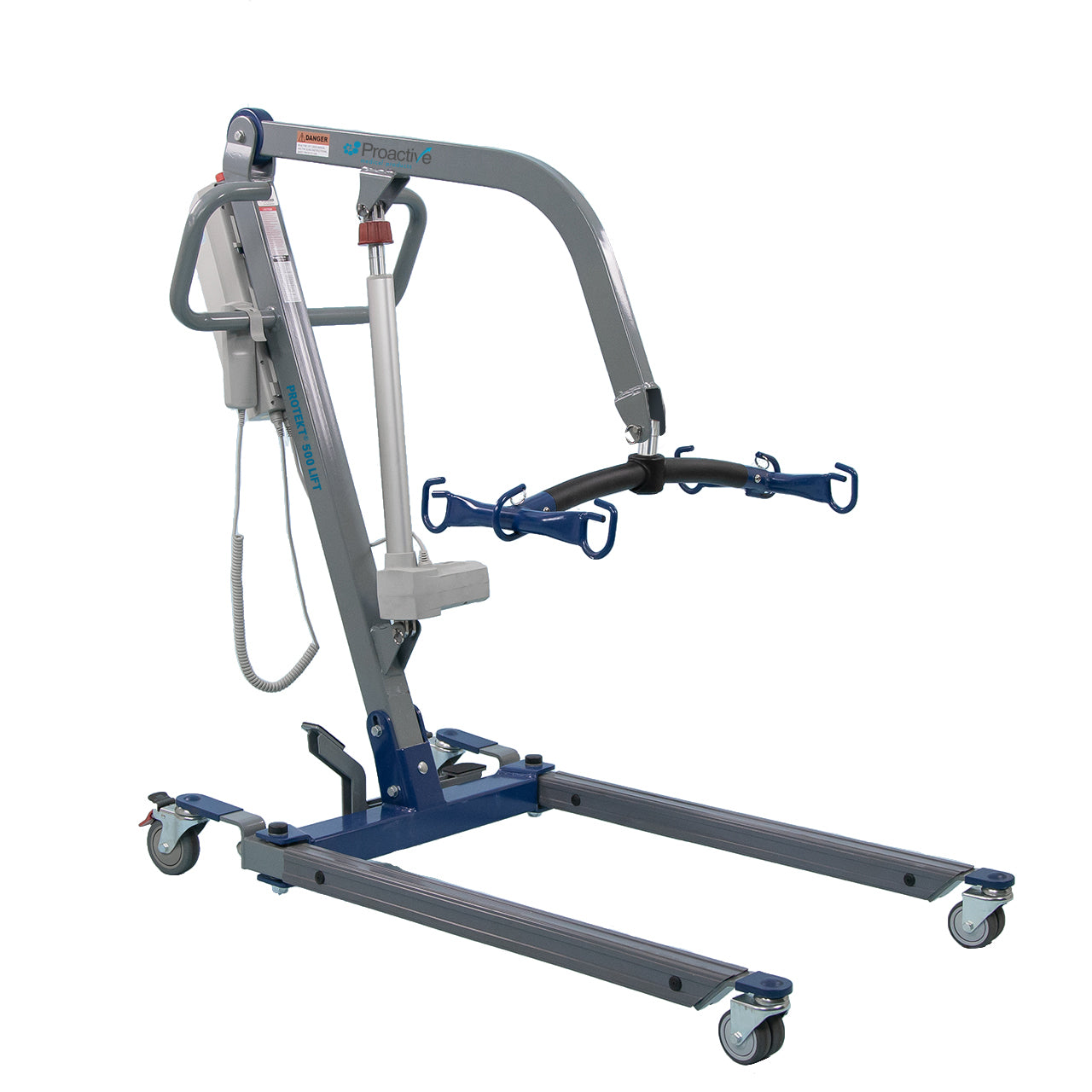

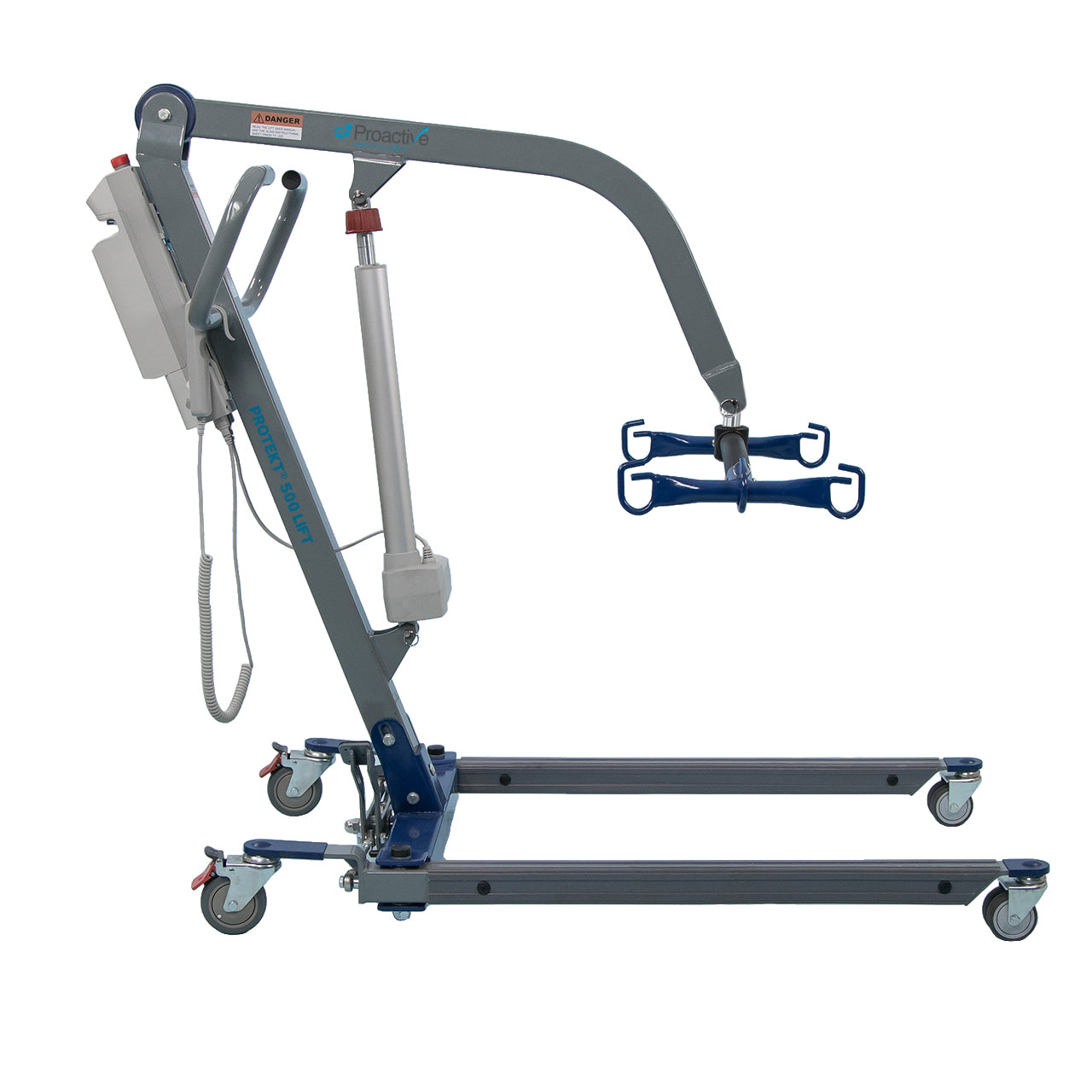

Protekt® 500 Electric Patient Lift (500 lb Capacity)

Protekt® 500 Electric Patient Lift (500 lb Capacity)

Name: Protekt® 500 Electric Patient Lift (500 lb Capacity)
Brand: Proactive Medical
SKU: 33500
Price: 1299.00 USD
Availability: InStock

$1,299.00

Tax excluded. Free shipping 5-7 business days

Dealer & Brand Disclosure
Prime Home Medical is an independent online retailer and authorized dealer of home medical equipment. All product names, logos, and brands are property of their respective owners. Products are manufactured by their respective brands and fulfilled through authorized U.S. distribution partners.

$1,299.00

The Protekt® 500 Electric Patient Lift delivers safe, controlled patient transfers with a powerful electric lift system, ergonomic base adjustment, and a 500 lb weight capacity—ideal for home care and professional facilities.

OVERVIEW

The Protekt® 500 Electric Patient Lift is built to deliver safe and efficient patient transfers while minimizing physical strain on caregivers. Its electric-powered lift mechanism provides smooth, controlled motion, while the adjustable base and low-profile design allow easy positioning around beds, chairs, and tight spaces.

This lift is capable of lifting patients directly from the floor and accommodates multiple sling styles for versatile care needs. Durable construction, intuitive controls, and safety-focused engineering make the Protekt® 500 a trusted solution for daily transfers.

FEATURES & BENEFITS

Protekt® 500 Electric Patient Lift

Feature	What It Does	Why It Matters
Universal Transfer Capability	Handles bed, chair, floor & vehicle transfers	One lift for all situations
Foldable Frame	Collapses for storage	Fits in most vehicle trunks
Portable Lightweight Design	Easy to transport	Ideal for travel and temporary care
Clip-Style Spreader Bar	Uses clip-style slings only	Secure and consistent positioning
Hands-Free Base Adjustment	Foot pedal controlled	Improves caregiver efficiency
Manual Emergency Lowering	Controlled descent during power loss	Enhanced patient safety
Rear Locking Casters	Dual locking system	Stability during transfers
Built-In Battery Gauge	Displays charge level	Prevents unexpected shutdowns
Audible Low Battery Indicator	Alerts caregiver	Better planning
350 lb Weight Capacity	Suitable for most patients	Ideal for home care

SPECIFICATIONS

Protekt® 500 Electric Patient Lift

Specification	Measurement
Weight Capacity	500 lbs
Unit Weight	109 lbs
Base Length	47.3"
Base External Width (Closed)	26.4"
Base Internal Width (Opened)	39.3"
Mast Height	51.3"
Front Caster Height	4.9"
Lifting Height – Lowest	28.7"
Lifting Height – Highest	71.3"
Base Opened Turning Diameter	62.8"
Base Closed Turning Diameter	58.3"

WHAT'S INCLUDED

Protekt® 500 Electric Patient Lift
High-performance electric full-body patient lift designed for safe, efficient transfers in home care and clinical environments.
Electric Lift Actuator
Provides smooth, controlled lifting to reduce strain on caregivers and improve patient comfort.
6-Point Spreader Bar
Allows compatibility with multiple sling styles for flexible and secure patient positioning.
Hand Pendant Control
Easy-to-use up/down controls for precise lift operation.
Rechargeable Battery Pack & Charger
Enables cordless operation with dependable battery performance between charges.
Manual Emergency Lowering System
Allows safe lowering of the patient in the event of power loss.
Heavy-Duty Steel Frame
Engineered for stability, durability, and long-term daily use.
Caster Wheels with Rear Brakes
Smooth-rolling front casters and locking rear casters for controlled maneuverability during transfers.
Owner’s Manual & Warranty Documentation

WARRANTY

*Manufacturer warranty applies*

Component	Warranty
Frame	3 Years
Electronics	2 Years
Battery	1 Year
Battery Charger & Accessories	Manufacturer-specified coverage

ACCESSORIES & COMPATIBILITY

Optional Digital Scale: Item #30300
Compatible with a wide range of patient slings (sold separately)

DELIVERY & SETUP

Ships securely packaged
Minimal assembly required
Designed for straightforward setup in home and professional environments

Which lift is right for you?

Answer 3 quick questions. We’ll recommend the best match.

1) What transfer do you need? 2) Patient weight (approx.) 3) Is portability/travel important?

Compare Protekt® Patient Lifts

Use this chart to compare lift type, capacity, portability, and recommended use.

FEATURE	ALL-IN-ONE 33350	TAKE-A-LONG 33400P	500 LIFT 33500	600 LIFT (BARIATRIC) 33600	STS COMPACT 500 34500-COM	500 STAND 34500	600 STAND 34600
Lift Type	Full-Body (Universal transfer)	Full-Body (Folding)	Full-Body (Power)	Full-Body (Bariatric Power)	Sit-to-Stand (Compact)	Sit-to-Stand	Sit-to-Stand (Heavy-Duty)
Weight Capacity	350 lb	400 lb	500 lb	600 lb	500 lb	500 lb	600 lb
Portability / Storage	✓ Portable + foldable	✓ Folds for trunk / travel	Standard footprint	Heavy-duty footprint	✓ Compact, low base height	Standard STS footprint	Heavy-duty STS footprint
Best For	Car, bed, chair, floor transfers (Clip-style sling)	Home use + travel; trunk storage	Everyday powered full-body transfers	Bariatric transfers; higher load demand	Tight spaces; under furniture; compact STS	Everyday sit-to-stand transfers	Heavier patients needing STS support
Spreader Bar / Sling Interface	4-point spreader bar (Clip sling only)	2-point spreader bar	6-point spreader bar	6-point spreader bar	STS sling hooks	STS sling hooks	STS sling hooks
Battery Powered	✓	✓	✓	✓	✓	✓	✓
Emergency Lowering	✓ Manual emergency lowering	✓ Emergency stop + safety alerts	✓ Manual emergency lowering	✓ Manual emergency lowering	✓ Emergency quick release	✓ Emergency quick release	✓ Emergency quick release
Care Setting Fit	Home care / travel use	Home care / travel use	Home / facility use	Facility / bariatric care	Home / facility (tight footprint)	Home / facility	Higher-acuity / bariatric STS
Notes	Designed for universal transfers; compact + folds	Tool-free assembly/disassembly options	Clip-free sling hookups; stable base	Higher capacity; heavier duty frame	Low base height ideal under furniture	High capacity STS with strong actuator	Extra wide adjustability + heavy-duty boom

Tip: Use the selector above to quickly pick the best model for your transfer type, patient weight, and space constraints.
